GV-DSP LPR V3

GV-DSP LPR V3

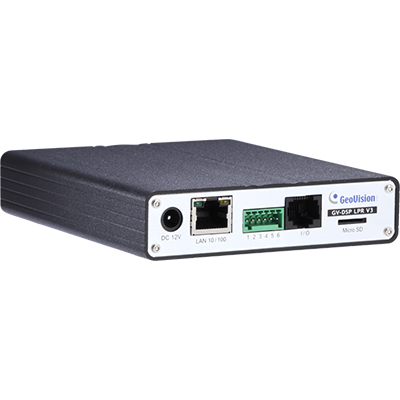

The GV‐DSP LPR is a Linux‐based license plate recognition system built in a small box. Integrating with a Web server, the GV‐DSP LPR can host its own Web site and compare captured license plates either with a standalone database created on GV‐DSP LPR, or a database downloaded from the access control software GV‐ASManager. When there is a match, GV‐DSP LPR will open a gate or barrier.

The GV-DSP LPR can also deliver live view images and recognized plate numbers, date and time to the GV-System for security surveillance.


Key Features
Overview
Accessories
Packing List
Video
Packing List
    • Non-PC based solution for 1 port traffic or mobile license plate recognition
    • Wide operating temperature range
    • Web-based configuration for image, security settings and firmware upgrade
    • Recognition triggered by video motion detection or sensor inputs
    • Opening a gate barrier when a captured license plate matches the database
    • Manageable by GV-AS Manager access control system
    • Standalone database
    • Digital watermark
    • Hardware watchdog
    • IP address filtering
    • WiFi
    • UMTS
    • GPS tracking

    Note:
    • This application is only supported by GV‐System V8.5.5 or later.
    • The maximum resolution is 720 x 480 (NTSC) / 720 x 576 (PAL) and the frame rate is 5 (NTSC) / 5 (PAL).
    • The Wiegand interface is NOT functional.
    • The GV‐DSP‐LPR V3 (firmware V1.05 or later) does not support UAE engine.
    • The relay output can only drive a maximum load of DC 5V, 5 mA. Working in conjunction with the GV‐Relay V2 module, it
    • can drive a heavier load of up to AC 250V 10A, DC 100V 5A.
    • Specifications are subject to change without notice.
  • Model No Name Details
    GV-GPS Receiver GV-GPS Receiver is a Global Position System receiver, allowing you to perform vehicle tracking and location verification functions.
    GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
    • Power Adaptor x 1
    • Wall Hook x 1
    • Conical Anchor x 4
    • Screw x 4
    • I/O Cable with RJ-45 Connector x 1
    • GV-DSP LPR User’s Manual on Software CD

    Note:
    • This application is only supported by GV‐System V8.5.5 or later.
    • The maximum resolution is 720 x 480 (NTSC) / 720 x 576 (PAL) and the frame rate is 5 (NTSC) / 5 (PAL).
    • The Wiegand interface is NOT functional.
    • The GV‐DSP‐LPR V3 (firmware V1.05 or later) does not support UAE engine.
    • The relay output can only drive a maximum load of DC 5V, 5 mA. Working in conjunction with the GV‐Relay V2 module, it
    • can drive a heavier load of up to AC 250V 10A, DC 100V 5A.
    • Specifications are subject to change without notice.
    • Power Adaptor x 1
    • Wall Hook x 1
    • Conical Anchor x 4
    • Screw x 4
    • I/O Cable with RJ-45 Connector x 1
    • GV-DSP LPR User’s Manual on Software CD

    Note:
    • This application is only supported by GV‐System V8.5.5 or later.
    • The maximum resolution is 720 x 480 (NTSC) / 720 x 576 (PAL) and the frame rate is 5 (NTSC) / 5 (PAL).
    • The Wiegand interface is NOT functional.
    • The GV‐DSP‐LPR V3 (firmware V1.05 or later) does not support UAE engine.
    • The relay output can only drive a maximum load of DC 5V, 5 mA. Working in conjunction with the GV‐Relay V2 module, it
    • can drive a heavier load of up to AC 250V 10A, DC 100V 5A.
    • Specifications are subject to change without notice.
